The complete mitochondrial genome of Chlorella sp. isolated from Lake Baikal

Full Text

1. Introduction

Baikal is a unique ancient oligotrophic freshwater lake - the deepest, oldest and largest by volume in the world. The lake has an unusual climatic environment and amazing of endemic flora and fauna diversity. Autotrophic picoplankton plays a significant role in the production of primary organic matter. In summer, picoplankton accounts for 60–90% of all primary production in Lake Baikal (Votintsev et al., 1975; Bondarenko and Guselnikova, 1989; Nagata et al., 1994). The greatest contribution to the phytoplankton biomass is made by diatoms and golden algae (Bondarenko et al., 2017), while green algae Chlorophyta are rare and represented by several species, with Chlorella-like algae noted only sporadically. Thus, authors reported the under-ice development of Chlorella sp. Baikal (Kozhova, 1959; 1987, Nagata et al., 1994). It was recently shown that Chlorella-like green algae dominated under the ice in 2020, and C. vulgaris (Beijerinck, 1890) was found at all the studied stations of the Irkutsk reservoir, indirectly adjacent to Lake Baikal. (Bashenkhaeva et al., 2020; Firsova et al., 2023).

The mass death of endemic sponges Lubomirskia baikalensis began in Baikal in 2011. (Belikov et al., 2019). Previously, we showed that significant changes occurred in the microbial communities of the sponge L. baikalensis and cell culture of the primmorph. A significant shift in microbial communities and mass death of the main symbiotic green algae Choricystis and their partial replacement with other algae in sponge communities were detected. (Belikov et al., 2019; Chernogor et al., 2020).

The draft genome sequence of Chlorella sp. strain BAC9706 (Petrushin et al., 2020) was prepared to expand our molecular biological knowledge of these microalgae and for compare them in the future with an endosymbiotic alga strain. In this study, we assembled the complete mitochondrial genome of a microalgal strain BAC9706 morphologically similar to Chlorella-like algae.

2. Materials and methods

2.1. DNA Sequencing and assembly

The genomic DNA was isolated as previously described (Petrushin et al., 2020) and sequenced using Illumina MiSeq platform. A draft assembly was built using SPAdes v. 3.15.4 (Bankevich et al., 2012). This draft assembly contained 5,837 contigs with an N50 value of 44,654 bp, and the largest contig was 317,606 bp long.

The obtained whole-genome assembly contigs were aligned on the reference genomes derived from NCBI using BLASTn to identify mitochondrial contig.

2.2. Mitogenome annotation

For genome annotation we used GeSeq tool (Tillich et al., 2017) with default parameters for protein-coding genes, tRNAs, and rRNAs with NC_045362 of Chlorella vulgaris strain NJ-7 sequence as reference for mitochondrial genome. The protein-coding genes were verified manually through alignments of homologous mitogenomes from other Chlorella vulgaris strains using BLAST search (https://blast.ncbi.nlm.nih.gov/Blast.cgi). Proteins encoded in introns (orfs) were identified by translating the nucleotide sequence into protein sequence using the translate tool with standard genetic codes (https://web.expasy.org/translate/). Complete mitochondrial DNA sequence was uploaded to the GenBank database (accession number PQ043348). OGDRAW was used for genome maps visualization OGDRAW (Greiner et al., 2019), to prepare files for Genbank submission we used GB2sequin (https://chlorobox.mpimp-golm.mpg.de/GenBank2Sequin.html) (Lehwark and Greiner, 2019).

2.3. Phylogenetic Analysis

To determine the phylogenetic relationship of Chlorella genus a Maximum-likelihood tree was constructed using MEGA11 (Tamura et al., 2021). All currently available sequences of complete well-annotated mitochondrial genomes belonging to the Chlorellales order were selected from NCBI. From these, we extracted all protein-coding sequences, performed alignments, and concatenated them. To improve alignments, sequences from outlying taxa were removed. Final phylogenetic tree is based on mitochondrial protein sequences representing 31 concatenated protein-coding mitochondrial genes (3 of 34 annotated genes for intron-encoded orfs were excluded from the analysis).

3. Results and Discussion

3.1. Nucleotide Composition and Genome Structure

The complete mitochondrial genome of Chlorella sp. BAC9706 was identified as a circular double-stranded molecule with a length of 90770 bp and is located between related strains UTEX259 (98062 bp) and NJ-7 (87477 bp). The nucleotide composition of Chlorella sp. strain BAC9706 is 35.2 % A, 35.0 % T, 15.1 % G, and 14.6 % C, with a higher AT bias (70.2 %). The AT content of the strain BAC9706 mitogenome was slightly higher than that of the two related strains, equal to 70.0 % (Table 1).



Table 1. Nucleotide distribution strains.

Nucleotide	BAC9706		UTEX259		NJ-7
	Count, bp	%	Count, bp	%	Count, bp	%
Adenine (A)	31978	35.2	34356	35.0	30602	35.0
Cytosine (C)	13285	14.6	14462	14.7	12883	14.7
Guanine (G)	13728	15.1	14965	15.3	13348	15.3
Thymine (T)	31779	35.0	34279	35.0	30644	35.0
Purines (A+G)	45706	50.4	49321	50.3	43950	50.2
Pyrimidines (C+T)	45064	49.6	48741	49.7	43527	49.8
C + G	27013	29.8	29427	30.0	26231	30.0
A + T	63757	70.2	68635	70.0	61246	70.0
Total length	90770		98062		87477



The mitochondrial genome of strain BAC9706 contains 34 protein-coding genes (PCGs), 27 tRNA, and 3 rRNA genes. Among these, a total of 19 PCGs are encoded on the heavy (H) strand, while 15 genes are located on the light (L) strand (Fig. 1). Total length of protein-coding genes is 26969 bp, accounting for 29.7% of entire mitochondrial genome. The gene order within the mitochondrial genome is identical to that of two related strains.

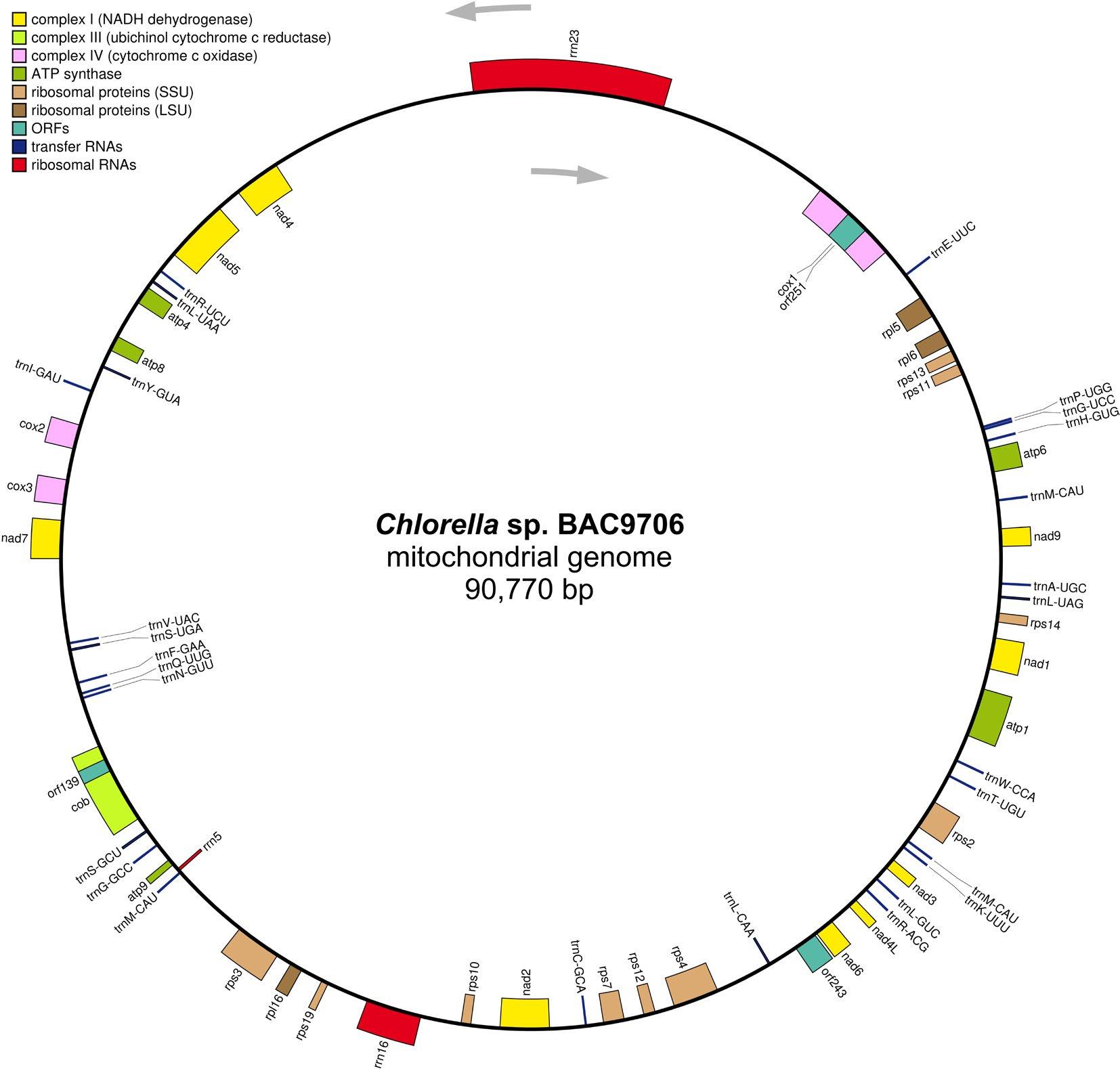

Fig.1. Mitochondrial genome map of Chlorella sp. strain BAC9706.



The protein-coding genes include 13 for ribosomal proteins (rpl5-6, 16, rps2-4, 7, 10-14, 19), 9 for NAD(P)H-quinone oxidoreductases (nad1–7, 9 and nad4L), 5 for ATP synthases (atp1, atp4, atp6, atp8 and atp9), 3 for coxs (cox1–3), 1 for cob, and 3 orf for putative proteins. Transfer RNA genes for all 20 amino acids were identified, in which tRNA-Met, tRNA-Leu are triplicated, and tRNA-Ser, tRNA-Arg, and tRNA-Gly are duplicated.

All PCGs have a typical initiation codon ATG and stop with TAA, except for rps13, rps14, atp8, atp9, cox2, nad3 that uses a stop codon TAG. Among the protein-coding genes, nad5 is the longest gene with a length of 2019 bp, while the shortest is the atp9 gene with a length of 225 bp. The number of bases in the 13 PCGs follows the pattern A (35.2%) > T (35.00%) > G (15.1%) > C (14.6%), suggesting that AT is more preferred in PCGs.

3.2. Phylogenetic analysis

Phylogenetic analysis using the mitochondrial genomes of Chlorellales species indicated that strain BAC9706 is closely related to other C. vulgaris strains - UTEX259, NJ-7, ITBBA3-12, KNUA007 and they clustered in the Chlorella lineage with 100% bootstrap support (Fig. 2).

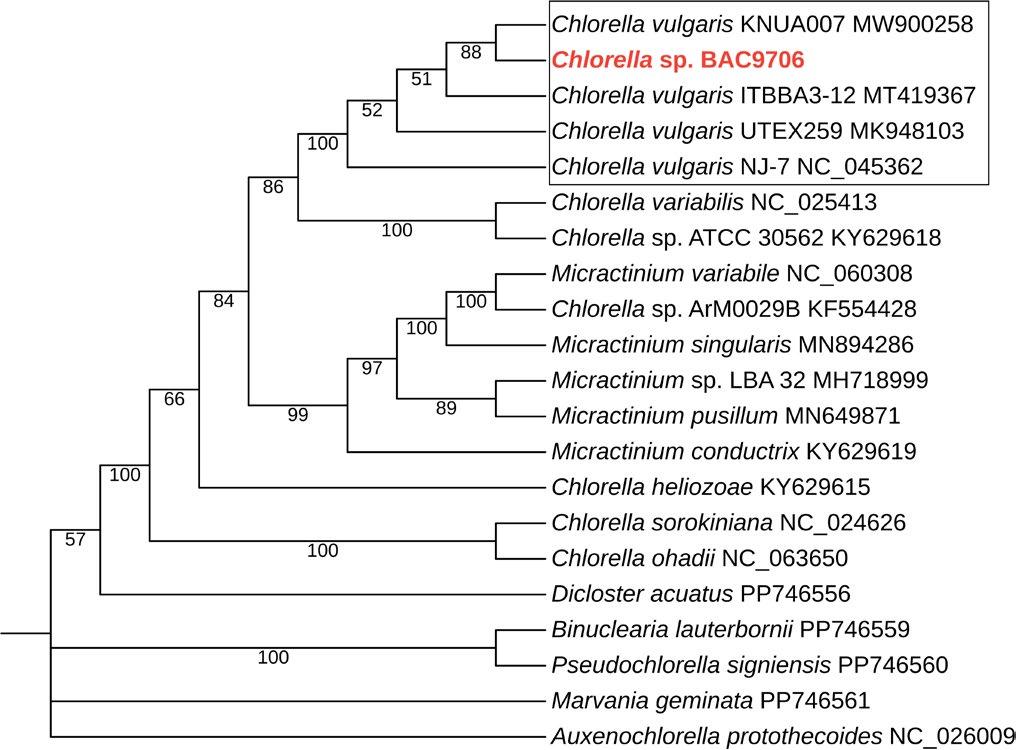

Fig.2. The Maximum Likelihood phylogenetic tree of Chlorella sp. strain BAC9706 based on mitochondrial concatenated protein-coding genes from Chlorellales taxa.



3.3. Whole mitogenome alignment

Whole genome alignment analysis for three strains C. vulgaris - UTEX259, NJ-7 and Chlorella sp. BAC9706 (Fig. 3) shows the following major differences in the mitochondrial genomes: in the UTEX259 strain, the intron of cox1 gene contains orf441, which is absent in the other two genomes; significant differences are in the gene encoding 23S rRNA and in the adjacent region, similarly, low conservation is observed next to the gene encoding 16S rRNA.

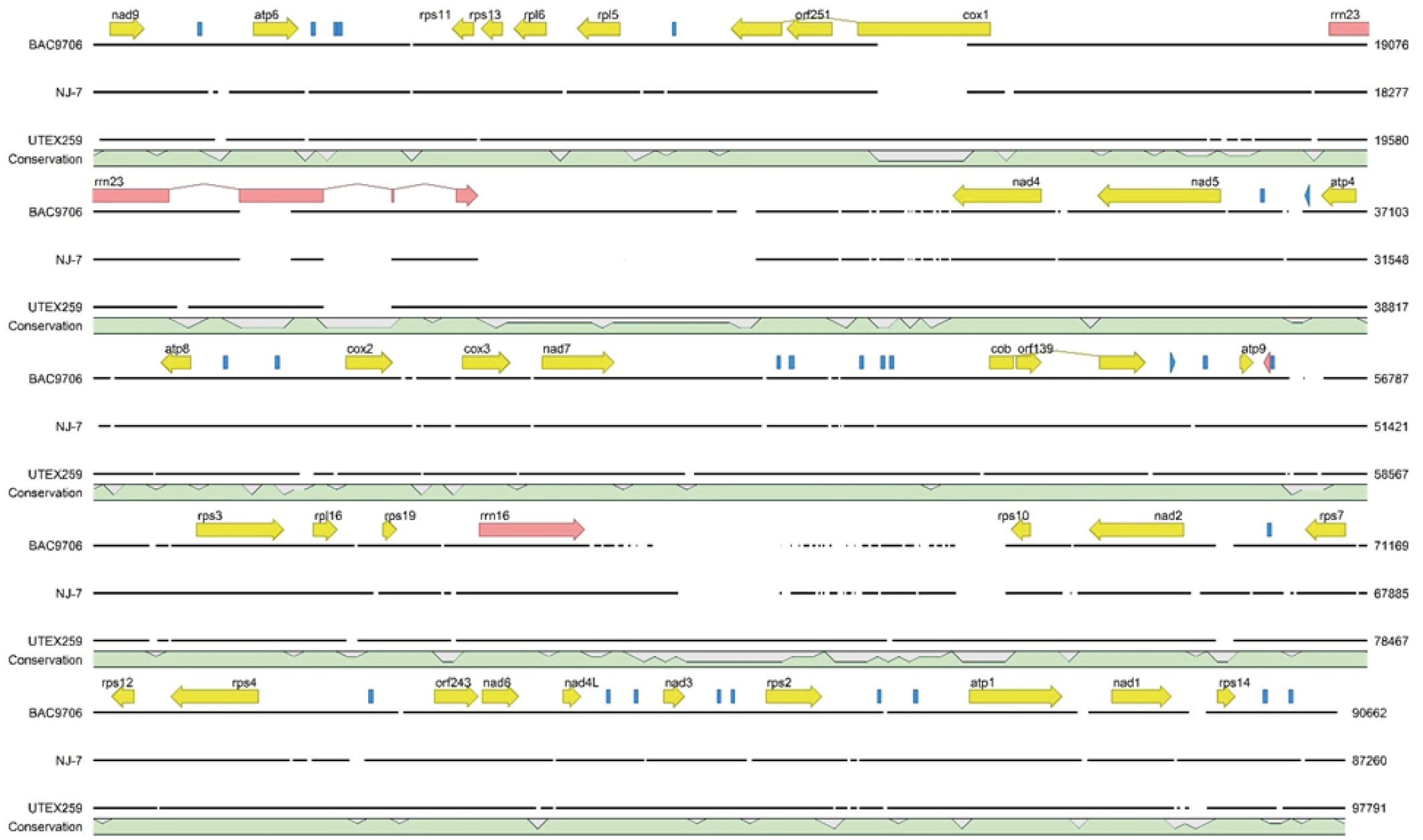

Fig.3. Alignment of whole genomes for three Chlorella strains - UTEX259 (MK948103), NJ7 (NC_045362) and Chlorella sp. BAC9706 (PQ043348). CDSs are shown in yellow, rRNAs in pink and tRNAs in blue. The light green line plot shows the conservation of the corresponding alignment region.



Thus, the main differences between the three closely related strains are related to the intergenic regions closed to rRNA genes.

4. Conclusions

In this study, we successfully assembled and analyzed the complete mitochondrial genome Chlorophyta green algae of the Lake Baikal. Next-generation whole genome sequencing of Chlorella-like green algae and bioinformatics analysis revealed a circular double-stranded molecule with a typical set of mitochondrial genes.

The constructed phylogenetic tree clearly indicates that the Chlorella-like strain BAC9706 is one of the representatives of the algae species C. vulgaris, Baikal ecotype of C. vulgaris.

Acknowledgements

We acknowledge D. Kuzmin, V. Sharov, K. Krutovsky and S. Feranchuk for their assistance in computational cluster administration and computation. The work was carried out with the financial support of the Ministry of Science and Higher Education of the Russian Federation within the framework of State Assignment No. 0279-2021-0011.

Conflict of interests

The authors hereby state that this research work and manuscript production complied with ethical standards, and none of the authors have any potential conflict of interests. We further declare that this research was not funded by any agency except RSF.
