Determination of Umifenovir and Its Metabolites by High-Performance Liquid Chromatography with Combined Mass Spectrometric Detection

S. A. Sypalov; Сыпалов С. А.; N. V. Ul’yanovskii; Ульяновский Н. В.; D. S. Kosyakov; Косяков Д. С.; A. T. Lebedev; Лебедев А. Т.

doi:10.31857/S0044450223090153

Determination of Umifenovir and Its Metabolites by High-Performance Liquid Chromatography with Combined Mass Spectrometric Detection

作者: Sypalov S.A.¹, Ul’yanovskii N.V.¹, Kosyakov D.S.¹, Lebedev A.T.¹
隶属关系:
1. Core Facility Center “Arktika”, M.V. Lomonosov Northern (Arctic) Federal University
期: 卷 78, 编号 9 (2023)
页面: 856-864
栏目: ORIGINAL ARTICLES
##submission.dateSubmitted##: 14.10.2023
URL: https://bakhtiniada.ru/0044-4502/article/view/136073
DOI: https://doi.org/10.31857/S0044450223090153
EDN: https://elibrary.ru/ZYKEYI
ID: 136073

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

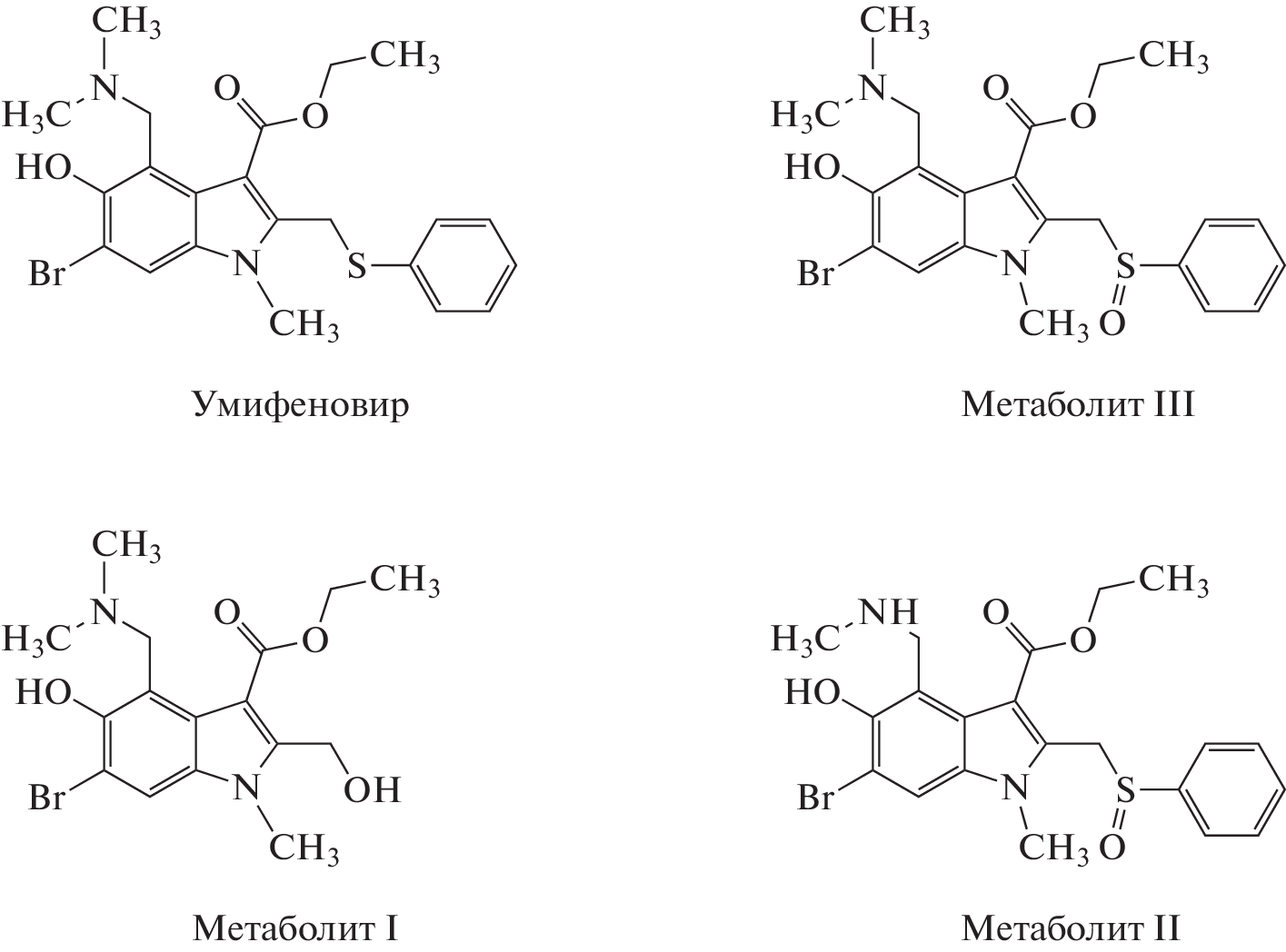

An approach to the highly sensitive and selective determination of the bromine-containing antiviral drug umifenovir (Arbidol) and its metabolites in natural and waste water, activated sludge, and bottom sediments by chromatography-mass spectrometry based on a combination of two techniques– inductively coupled plasma mass spectrometry (ICP MS) and electrospray ionization high-resolution mass spectrometry (ESI HRMS) is developed. Reversed-phase chromatographic separation and detection based on ESI HRMS provide the reliable detection and identification of analytes in complex matrices, while the use of ICP-MS with 79Br signal detection makes it possible to exclude matrix effects and use a single analytical standard for quantitative analysis. The use of solid-phase extraction and pressurized liquid extraction as sample preparation methods made it possible to achieve limits of detection at a level of 0.2 ng/L and 2 µg/kg for liquid and solid samples, respectively. The developed approach was successfully tested in the analysis of real samples. It is shown that the concentrations of analytes in urban wastewaters are in the range 4.4–260 ng/L. The highest concentration (up to 3.7 mg/kg) is characteristic of activated sludge, which acts as an effective sorbent for umifenovir and its transformation products.

关键词

umifenovir, arbidol, metabolites, wastewater, activated sludge, HPLC–ICP-MS, HPLC–HRMS

参考

Suda K.J., Hunkler R.J., Matusiak L.M., Schumock G.T. Influenza antiviral expenditures and outpatient prescriptions in the United States, 2003–2012 // Pharmacotherapy. 2015. V. 35. № 11. P. 991. https://doi.org/10.1002/phar.1656
Трофимов Ф.А., Цышкова Н.Г., Зотова С.А., Гринев А.Н. Синтез нового противовирусного препарата Арбидола // Фармацевтический химический журнал. 1993. Т. 27. № 1. С. 75. (Trofimov F.A., Tsyshkova N.G., Zotova S.A., Grinev A.N. Synthesis of a new antiviral agent, arbidole // Pharm. Chem. J. 1993. V. 27. № 1. P. 75. )https://doi.org/10.1007/BF00772858
Pécheur E.I., Borisevich V., Halfmann P., Morrey J.D., Smee D.F., Prichard M., Mire C.E., Kawaoka Y., Geisbert T.W., Polyak S.J. The synthetic antiviral drug arbidol inhibits globally prevalent pathogenic viruses // J. Virol. 2016. V. 90. № 6. P. 3086. https://doi.org/10.1128/JVI.02077-15
Инструкция по медицинскому применению лекарственного препарата Арбидол. https://arbidol.ru/files/arbidol_maksimum_kapsuly_200_mg.pdf?v=20210224 (дата обращения 08.04.2023).
Kuroda K., Li C., Dhangar, K., Kumar M. Predicted occurrence, ecotoxicological risk and environmentally acquired resistance of antiviral drugs associated with COVID-19 in environmental waters // Sci. Total Environ. 2021. V. 776. Article 145740. https://doi.org/10.1016/j.scitotenv.2021.145740
Ul’yanovskii N.V., Kosyakov D.S., Sypalov S.A., Varsegov I.S., Shavrina I.S., Lebedev A.T. Antiviral drug Umifenovir (Arbidol) in municipal wastewater during the COVID-19 pandemic: Estimated levels and transformation // Sci. Total Environ. 2022. V. 805. Article 150380. https://doi.org/10.1016/j.scitotenv.2021.150380
Proskurnina E.V., Izmailov D.Y., Sozarukova M.M., Zhuravleva T.A., Leneva I.A., Poromov A.A. Antioxidant potential of antiviral drug umifenovir // Molecules. 2020. V. 25. № 7. P. 1577. https://doi.org/10.3390/molecules25071577
Muller A.L., Mello P.A., Mesko M.F., Duarte F.A., Dressler V.L., Muller E.I., Flores E.M. Bromine and iodine determination in active pharmaceutical ingredients by ICP-MS // J. Anal. At. Spectrom. 2012. V. 27. № 11. P. 1889. https://doi.org/10.1039/C2JA30212H
Xie R., Johnson W., Spayd S., Hall G.S., Buckley B. Arsenic speciation analysis of human urine using ion exchange chromatography coupled to inductively coupled plasma mass spectrometry // Anal. Chim. Acta. 2006. V. 578. № 2. P. 186. https://doi.org/10.1016/j.aca.2006.06.076
de Souza S.S., Campiglia A.D., Barbosa Jr F. A simple method for methylmercury, inorganic mercury and ethylmercury determination in plasma samples by high performance liquid chromatography–cold-vapor-inductively coupled plasma mass spectrometry // Anal. Chim. Acta. 2013. V. 761. P. 11. https://doi.org/10.1016/j.aca.2012.11.038
McSheehy S., Pohl P., Łobiński R., Szpunar J. Investigation of arsenic speciation in oyster test reference material by multidimensional HPLC-ICP-MS and electrospray tandem mass spectrometry (ES-MS-MS) // Analyst. 2001. V. 126. № 7. P. 1055. https://doi.org/10.1039/B102225N
Bierla K., Dernovics M., Vacchina V., Szpunar J., Bertin G., Lobinski R. Determination of selenocysteine and selenomethionine in edible animal tissues by 2D size-exclusion reversed-phase HPLC-ICP MS following carbamidomethylation and proteolytic extraction // Anal. Bioanal. Chem. 2008. V. 390. P. 1789. https://doi.org/10.1007/s00216-008-1883-5
Klencsár B., Li S., Balcaen L., Vanhaecke F. High-performance liquid chromatography coupled to inductively coupled plasma–Mass spectrometry (HPLC-ICP-MS) for quantitative metabolite profiling of non-metal drugs // Trends Anal. Chem. 2018. V. 104. P. 118. https://doi.org/10.1016/j.trac.2017.09.020
Liu D., Chen G., Huo Z., Liu H., Ji W., Liu H. A study of bromine speciation in human serum and ambroxol determination in rat plasma by liquid chromatography–inductively coupled plasma mass spectrometry // Chromatographia. 2019. V. 82. P. 927. https://doi.org/10.1007/s10337-019-03730-z
Brauer G. Handbook of Preparative Inorganic Chemistry. New York: Academic Press Inc., 1993. 1906 p.
Lyon T.D.B., Robin P.A., Watson W.S., Littlejohn D. Determination of elevated concentrations of bromine in serum by ICP-MS and ICP-OES // J. Anal. At. Spectrom. 2005. V. 20. № 8. P. 757. https://doi.org/10.1039/B417529H
Kosyakov D.S., Ul’yanovskii N.V., Popov M.S., Latkin T.B., Lebedev A.T. Halogenated fatty amides – A brand new class of disinfection by-products // Water Res. 2017. V. 127. P. 183. https://doi.org/10.1016/j.watres.2017.10.008
