A young patient complaining of left scrotal pain diagnosed with testicular ischemia: a potentially fatal consequence of epididymitis

Cover Image

Cite item

Full Text

Abstract

Rare complications of acute epididymitis include ischemia and infarction of the testicles. Both clinically and radiologically, it is challenging to distinguish testicular torsion. In this article we have tried to expand the library of digital images of radiological diagnostic methods used for fast and accurate differential diagnostics. This case emphasizes the significance of a comprehensive radiological assessment and how a multidisciplinary approach is necessary to guarantee an accurate diagnosis. A 24-year-old man experienced severe left testicular pain and came to the hospital 2 weeks later. At the radiology department, he reported that he had for some time painful ejaculations, pain during intercourse (dyspareunia), scrotal redness/swelling, genital inflammation, chills, swollen inguinal lymph nodes, dysuria, and scrotal pain. All diagnostic procedures were performed, first ultrasonography and then magnetic resonance imaging, as required by the urologist. The imaging studies revealed left testicular ischemia, and based on the referred clinical history, a chronic orchid-epididymitis was suspected. Thus, the condition was resolved, not with a left orchidectomy but with medical therapy because the ischemia area was not too large. The patient also had a left varicocele. Images acquired with different magnetic resonance imaging sequences were carefully examined. A rare instance of epididymal orchitis is described as a potentially dangerous complication of epididymitis and must be considered if sudden, severe scrotal pain is experienced to avoid severe consequences. This case can help with optimal patient management and prevent unnecessary interventions.

About the authors

Manuela Montatore

Foggia University School of Medicine

Email: manuela.montatore@unifg.it
ORCID iD: 0009-0002-1526-5047

MD

Italy, Foggia

Marina Balbino

Foggia University School of Medicine

Email: marinabalbino93@gmail.com
ORCID iD: 0009-0009-2808-5708

MD

Italy, Foggia

Giacomo Fascia

Foggia University School of Medicine

Email: giacomo.fascia@unifg.it
ORCID iD: 0000-0001-5244-5093

MD

Italy, Foggia

Ruggiero Tupputi

Dimiccoli Hospital

Email: rutudott@gmail.com
ORCID iD: 0009-0006-0329-6320

MD

Italy, Barletta

Federica Masino

Foggia University School of Medicine

Email: federicamasino@gmail.com
ORCID iD: 0009-0004-4289-3289

MD

Italy, Foggia

Gianmichele Muscatella

Foggia University School of Medicine

Email: muscatella94@gmail.com
ORCID iD: 0009-0004-3535-5802

MD

Italy, Foggia

Rossella Gifuni

Foggia University School of Medicine

Email: rossella.gifuni@unifg.it
ORCID iD: 0009-0009-9679-3861

MD

Italy, Foggia

Giuseppe Guglielmi

Foggia University School of Medicine; Dimiccoli Hospital; IRCCS Casa Sollievo della Sofferenza Hospital

Author for correspondence.
Email: giuseppe.guglielmi@unifg.it
ORCID iD: 0000-0002-4325-8330

MD, Professor

Italy, Foggia; Barletta; San Giovanni Rotondo

References

  1. Ibrahimi A, Ziani I, Bellouki O, et al. Epididymo-testicular ischemia without torsion. Urology case reports. 2020;33:101324. doi: 10.1016/j.eucr.2020.101324
  2. Alharbi B, Rajih E, Adeoye A, et al. Testicular ischemia secondary to epididymo-orchitis: A case report. Urology case reports. 2019;27:100893. doi: 10.1016/j.eucr.2019.100893
  3. Wang Z, Qiu M, Gao X, Zhang L. Testicular ischemia secondary to acute epididymitis: A case report. Medicine (Baltimore). 2023;102(20):e33843. doi: 10.1097/MD.0000000000033843
  4. Rhudd A, Moghul M, Reid G. Epididymo-orchitis causing testicular infarction: a serious complication of a common disorder. Journal of surgical case reports. 2017;2017(10):rjx207. doi: 10.1093/jscr/rjx207
  5. Kodama K, Yotsuyanagi S, Fuse H, et al. Magnetic resonance imaging to diagnose segmental testicular infarction. The Journal of urology. 2000;163(3):910–911.
  6. Sue SR, Pelucio M, Gibbs M. Testicular infarction in a patient with epididymitis. Academic emergency medicine. 1998;5(11):1128–1130. doi: 10.1111/j.1553-2712.1998.tb02679.x
  7. Karaguzel E, Kadihasanoglo M, Kutlu O. Mechanisms of testicular torsion and potential protective agents. Nature reviews. Urology. 2014;11(7):391–399. doi: 10.1038/nrurol.2014.135
  8. Nickel JC. Inflammatory and Pain Conditions of the Male Genitourinary Tract: Prostatitis and Related Pain Conditions, Orchitis, and Epididymitis. In: Wein AJ, Kavoussi LR, Partin AW, Peters CA. Campbell-Walsh Urology, 11th ed. Philadelphia: Elsevier; 2016. P. 329–332.
  9. Pilatz A, Fijak M, Wagenlehner F, Schuppe HC. Orchitis. Der Urologe. Ausg. A. 2019;58(6):697–710. doi: 10.1007/s00120-019-0951-0
  10. Krieger JN. Epididymitis, orchitis, and related conditions. Sexually transmitted diseases. 1984;11(3):173–181. doi: 10.1097/00007435-198407000-00012
  11. Kreydin EI, Barrisford GW, Feldman AS, Preston MA. Testicular cancer: what the radiologist needs to know. AJR. American journal of roentgenology. 2013;200(6):1215–1225. doi: 10.2214/AJR.12.10319

Supplementary files

Supplementary Files
Action
1. JATS XML

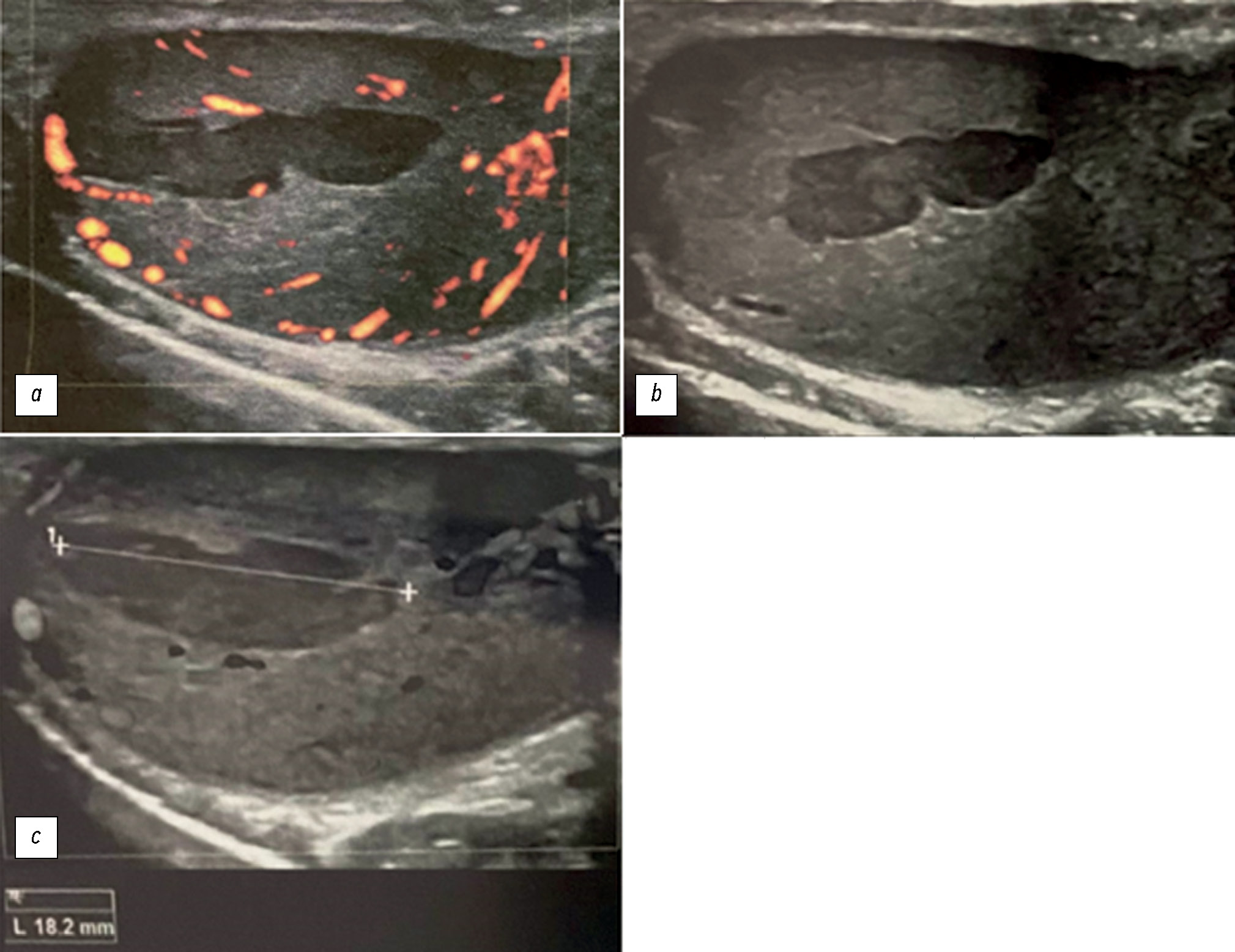

2. Fig. 1. Ultrasound examination revealed heterogeneity of echostructure and edema of the left testicle, in the tissues of which increased vascularization was observed (a) with the exception of an extended oval-shaped area approximately 18.2 mm long (c). This area was characterized by the absence of a Doppler signal (b), which gave grounds to suspect an infarction. Ultrasound examination at an early stage of the disease does not reveal any abnormalities. As the disease progresses (as in this case), the area of ​​ischemia becomes hypoechoic: in the images of the testicle in the transverse and longitudinal projections, a hypoechoic lesion of a wedge-shaped oval shape is visualized, crossing the testicle transversely, with the apex in the area of ​​the testicular mediastinum.

Download (302KB)
3. Fig. 2. Color Doppler sonography revealed impaired perfusion: no blood flow in the lesion and hypervascularization along its periphery. The ipsilateral epididymis with edema and heterogeneous structure differs in echogenicity from the contralateral one (a). This picture should be taken into account in the differential diagnosis with small tumors, which often lack perfusion, but the morphology of these tumors differs from wedge-shaped. Color Doppler sonography showed no perfusion in the elongated oval area of ​​ischemia. The lower images present the results of echocardiography with color Doppler sonography during the Valsalva maneuver (b) and in the initial state (c). The study yielded the same results.

Download (342KB)
4. Fig. 3. In the region of the upper pole of the left testicle (T2-weighted image), a focus of heterogeneous structure was detected, consisting of a series of linear cavities indicating the presence of ischemia.

Download (135KB)
5. Fig. 4. The area of ​​ischemia of the left testicle on the axial section (T2-weighted image).

Download (60KB)
6. Fig. 5. Area of ​​hypointense signal on the axial section of the left testicle at different levels (in the Short Tau Inversion Recovery (STIR) mode).

Download (112KB)
7. Fig. 6. Increased contrast of the pathological focus in the area under study, especially in the upper pole, is observed. In T1 mode, the area gives an isointense signal compared to the rest of the testicular tissue. Hyperintense areas of hemorrhage are highlighted. After the introduction of a contrast agent (e.g., gadolinium), the absence of vessels with a characteristic halo of saturation along the periphery of the pathological focus is revealed in the area under study.

Download (71KB)
8. Fig. 7. Two groups of images of the ischemic area of ​​the left testicle at different levels. The upper and lower images were obtained in STIR and T2 modes, respectively.

Download (217KB)
9. Fig. 8. Left-sided varicocele in the presence of a thin layer of hydrocele.

Download (116KB)
