Depth Distribution of Radiation Defects under Ion Irradiation of Silicon

N. V. Novikov; Новиков Н. В.; N. G. Chechenin; Чеченин Н. Г.; A. A. Shirokova; Широкова А. А.

doi:10.31857/S1028096023010181

Depth Distribution of Radiation Defects under Ion Irradiation of Silicon

Autores: Novikov N.V.¹, Chechenin N.G.¹, Shirokova A.A.¹
Afiliações:
1. Moscow State University, Skobeltsyn Institute of Nuclear Physics
Edição: Nº 1 (2023)
Páginas: 50-54
Seção: Articles
URL: https://bakhtiniada.ru/1028-0960/article/view/137658
DOI: https://doi.org/10.31857/S1028096023010181
EDN: https://elibrary.ru/BLSFQY
ID: 137658

Citar

Texto integral

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

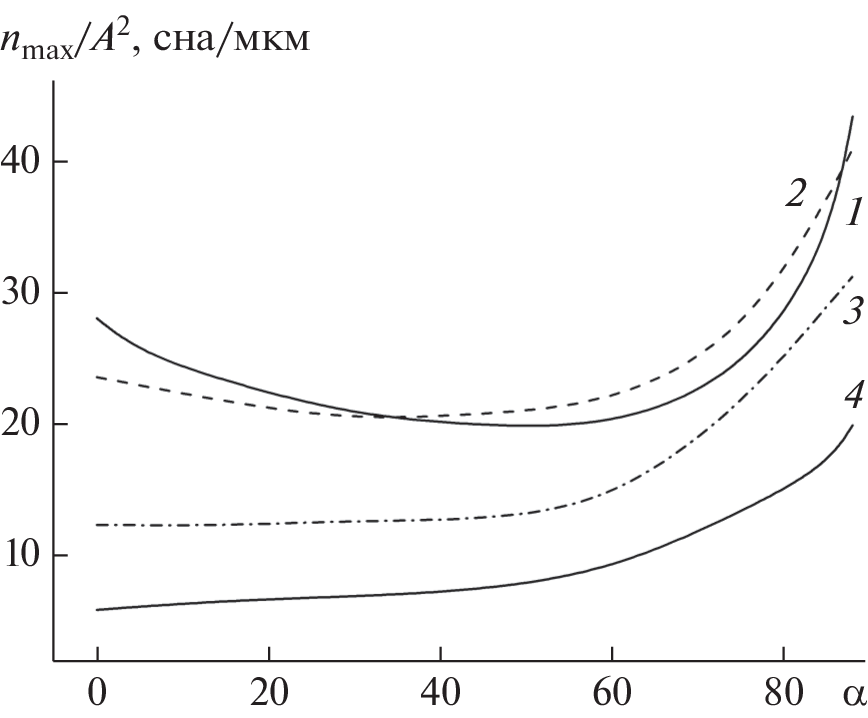

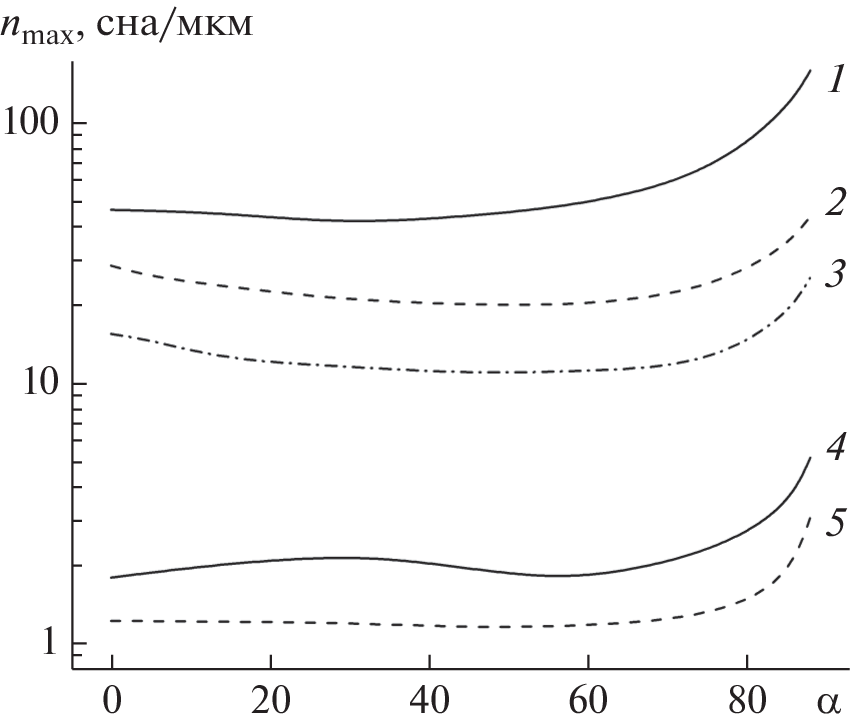

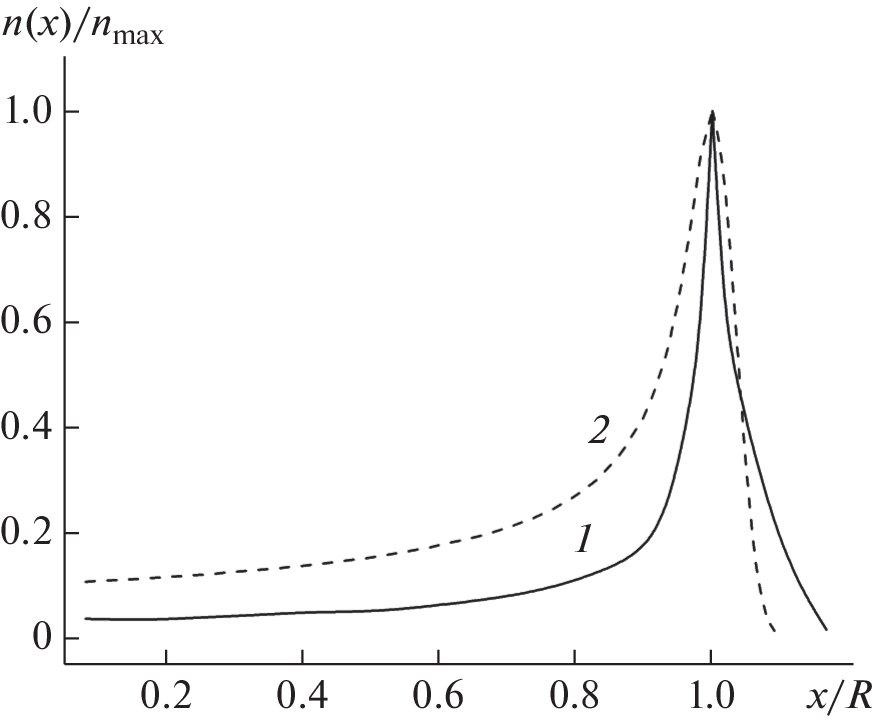

The defect distribution density reaches its maximum at a depth that depends on the energy and mass of the ion. This depth decreases with increasing angle of incidence due to multiple scattering of primary ions in the surface layers of the target. As the ion mass increases, the maximum defect density increases according to a power law. The asymmetry of the maximum in the depth distribution of defects is associated with an increase in the elastic energy loss during ion stopping and a decrease in the ion transmission coefficient with increasing layer depth.

Palavras-chave

irradiated material, ion-induced defect, displacement per atom, elastic energy loss of ions.

Bibliografia

Zhang Y., Weber W. J. // Appl. Phys. Rev. 2020. V. 7. P. 041307. https://doi.org/10.1063/5.0027462
Lindhard J., Nielsen V., Scharff M. et al. // Mat. Fys. Medd. Dan. Vid. Selsk. 1963. V. 33. № 10. P. 1.
Лейман К. Взаимодействие излучения с твердым телом и образование элементарных дефектов. М.: Атомиздат, 1979. 295 с.
Nordlund K. // J. Nucl. Mater. 2019. V. 520. P. 273. https://doi.org/10.1016/j.jnucmat.2019.04.028
Chen E.Y., Deo C., Dingreyille R. // J. Mater. Res. 2019. V. 34. P. 2239. https://doi.org/10.1557/jmr.2019.42
Chen S., Tamagno P., Bernard D. et al. // Results Phys. 2020. V. 7. P. 03023. https://doi.org/10.1016/j.rinp.2020.103023
Novikov N.V., Chechenin N.G., Shirokova A.A. // Rad. Eff. Defects Solids. 2021. V. 176. P. 1107. https://doi.org/10.1080/10420150.2021.2007915
Таперо К.И., Улимов В.Н., Членов А.М. Радиационные эффекты в кремниевых интегральных схемах космического применения. М.: Изд-во БИНОМ Лаборатория знаний, 2014. 302 с.
Ziegler J., Biersack J.P. SRIM: the Stopping and Range of Ions in Matter. www.srim.org.
Plimpton S. // J. Comput. Phys. 1995. V. 117. P. 1.
Allison J., Amako K., Apostolakis J. et al. // Nucl. Instrum. Methods Phys. Res. A. 2016.V. 835. P. 186. geant4.web.cern.ch.
Ziegler J.F., Biersack J.P., Littmark U. The Stopping and Range of Ions in Matter, N.Y.: Pergamon, 1985.
Kinchin G.H., Pease R.S. // Rep. Prog. Phys. 1955. V. 18. P. 1.
