Solution of the Inverse Problem of Calculating a Gas–Liquid Injector with a Two-Phase Flow

P. V. Zotikova; Зотикова П. В.; N. A. Kucherov; Кучеров Н. А.; I. A. Lepeshinskii; Лепешинский И. А.; V. A. Reshetnikov; Решетников В. А.

doi:10.31857/S1024708422600877

Solution of the Inverse Problem of Calculating a Gas–Liquid Injector with a Two-Phase Flow

Авторлар: Zotikova P.V.¹, Kucherov N.A.¹, Lepeshinskii I.A.¹, Reshetnikov V.A.¹
Мекемелер:
1. Moscow Aviation Institute
Шығарылым: № 3 (2023)
Беттер: 77-82
Бөлім: Articles
URL: https://bakhtiniada.ru/1024-7084/article/view/135085
DOI: https://doi.org/10.31857/S1024708422600877
EDN: https://elibrary.ru/TMQHOO
ID: 135085

Дәйексөз келтіру

Толық мәтін

Аннотация
Авторлар туралы
Әдебиет тізімі
Қосымша файлдар
Статистика

Аннотация

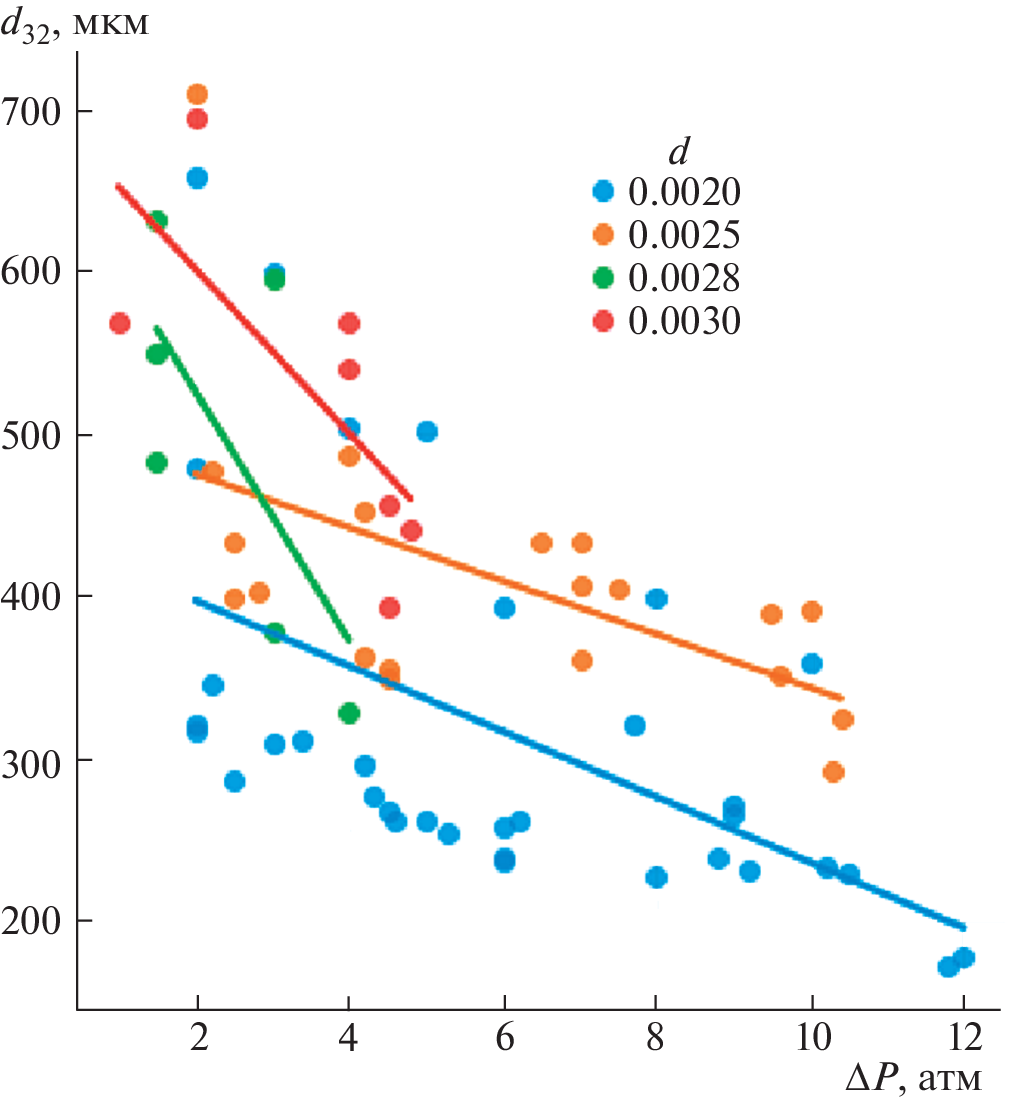

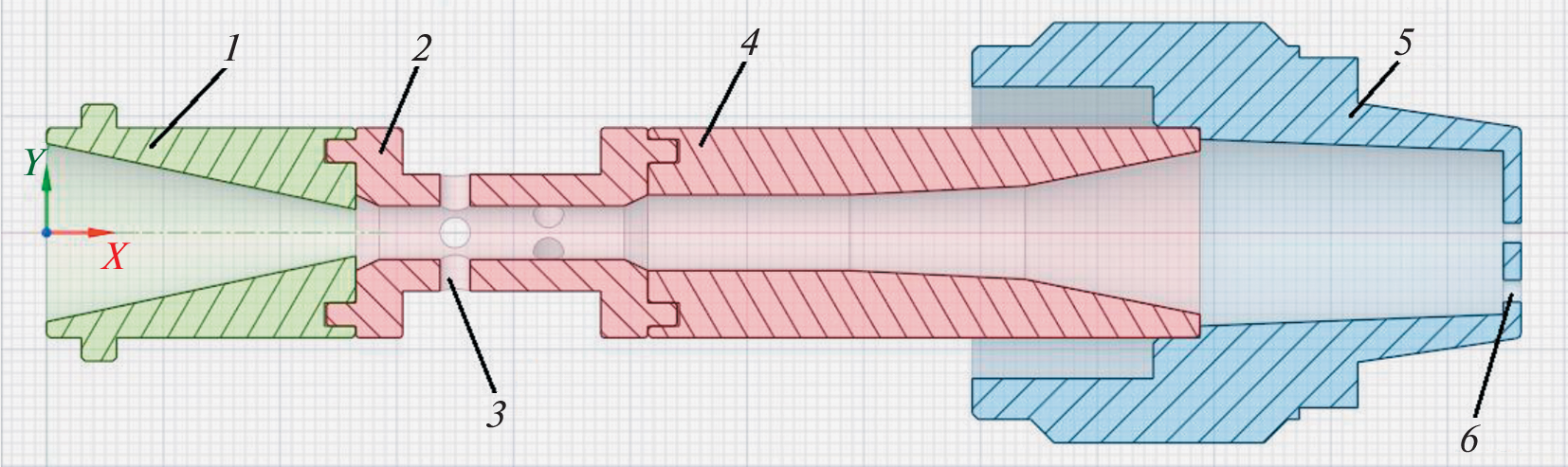

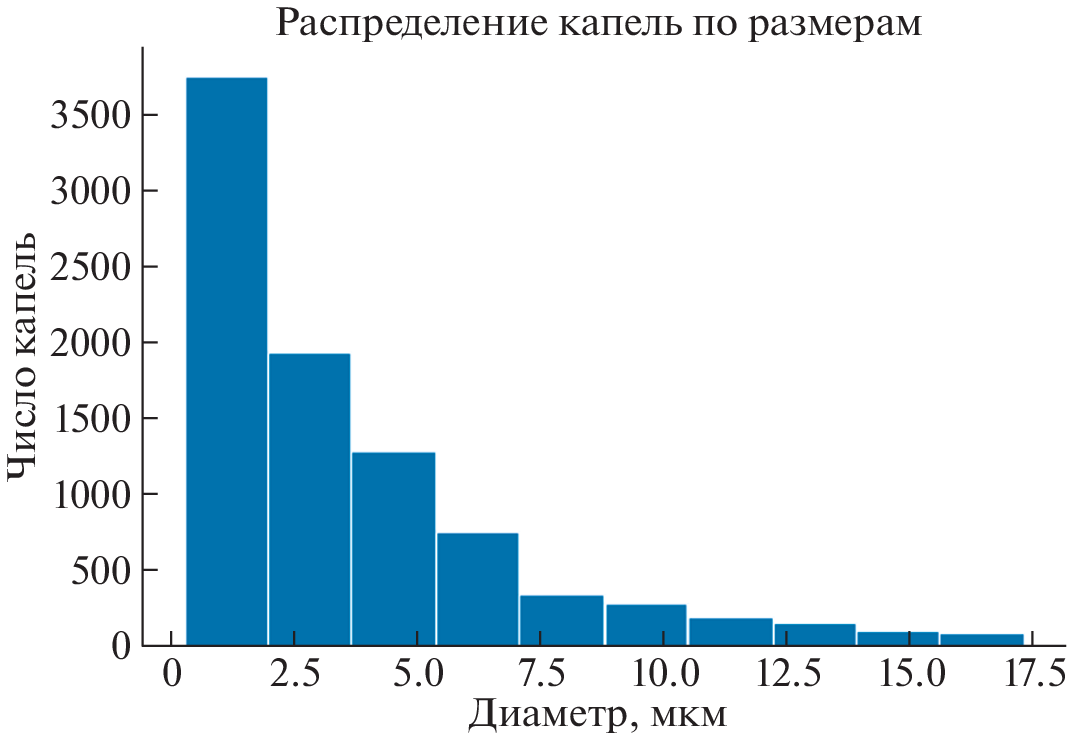

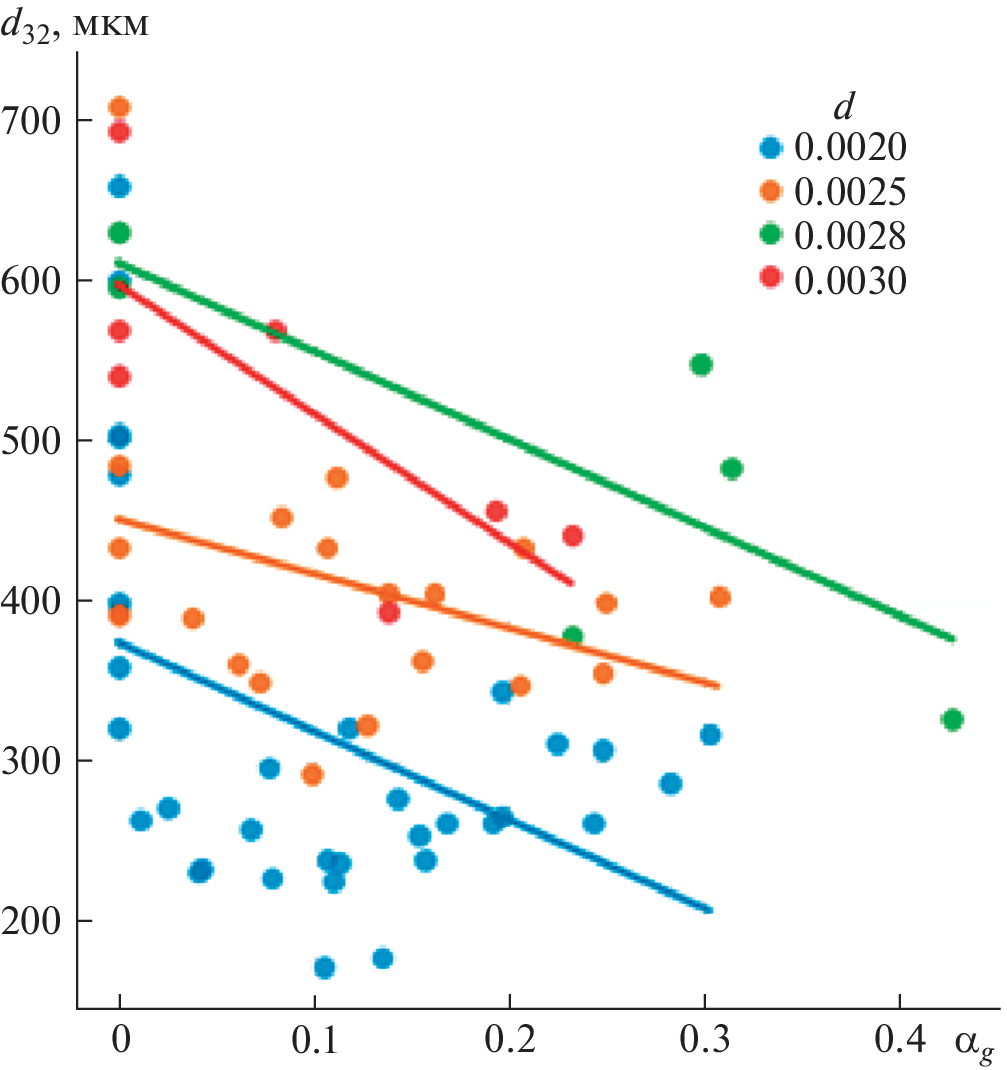

We consider the possibility of solving the inverse problem of calculating a gas–liquid jet injector with a bubbly two-phase flow structure. The parameters governing the injector operation, such as the pressure difference, the orifice diameter, and the air concentration, are determined for the given value of the mean Sauter diameter. For this purpose, the operation of a mixer with a two-phase working body and injectors of different diameters was experimentally investigated in the bubbly operation regime with a water–air working body. In the experiments the parameters of the phases supplied to the mixer (flow rates, pressures, and temperatures) were measured, together with the pressure ahead of the injector. The dispersity and velocity parameters in the spray were measured using the laser shadow method. The statistics thus gathered allow one to obtain the required correlation dependences which makes it possible to solve the problem formulated.

Негізгі сөздер

two-phase gas–liquid flow, bubbly structure, injector, droplets, dispersity, dispersal

Әдебиет тізімі

Czernek Krystian, Hyrycz Michał, Krupińska Andżelika, Matuszak Magdalena, Ochowiak Marek, Witczak Stanislaw, Włodarczak Sylwia. State-of-the-Art Review of Effervescent-Swirl Atomizers // Energies. 2021. V. 14. P. 2876. https://doi.org/10.3390/en14102876
Марчуков Е.Ю., Мухин А.Н., Лепешинский И.А., Решетников В.А., Кучеров Н.А. Экспериментальное исследование смесительного устройства форсажной камеры газотурбинного двигателя // Изв. РАН. МЖГ. 2022. № 4. С. 3–10.
Лепешинский И.А., Решетников В.А., Заранкевич И.А. Численное моделирование и экспериментальное исследование жидкостно-газового двухфазного эжектора со сверхзвуковым профилированным соплом// Вестник Самарского университета. Аэрокосмическая техника, технологии и машиностроение. 2017. Т. 16. № 2. С. 164–171.
Лепешинский И.А., Решетников В.А., Заранкевич И.А., Истомин Е.А., Антоновский И.В., Гузенко А.А. Экспериментальное исследование газодинамического смесителя закрытого типа // Вестник Самарского университета. Аэрокосмическая техника, технологии и машиностроение. 2016. Т. 15. № 3. С. 70–80.
Сайт фирмы Lavision [Электронный источник] URL: http://lavision.de/en/
Lin Jianzhong&Qian, Lijuan&Xiong, Hongbin. Relationship between deposition properties and operating parameters for droplet onto surface in the atomization impinging spray // Powder Technology. 2009. 191. P. 340–348. https://doi.org/10.1016/j.powtec.2008.11.009
Nelder J.A. and Mead R. // Computer Journal. 1965. V. 7. P. 308–313.
Powell M.J.D. An efficient method for finding the minimum of a function of several variables without calculating derivatives // The Computer Journal. 1964. V. 7. P. 155–162.
Гилл Ф., Мюррей У., Райт М. Практическая оптимизация / Пер. с англ. М.: Мир, 1985, 503 с.
Nocedal, Jeorge; Wright, Stephen J. Numerical Optimization / 2nd ed. N.Y.: Springer, 2006, 634 c.
Liu D.C., Nocedal J. On the Limited Memory Method for Large Scale Optimization// Mathematical Programming B.1989. V.45. № 3. P. 503–528.
Powell M.J.D. A direct search optimization method that models the objective and constraint functions by linear interpolation / Advances in Optimization and Numerical Analysis / Eds. S. Gomez and J-P Hennart. Dordrecht.: Kluwer Academic, 1994. P. 51–67.
Bonnans J.F., Gilbert J.Ch., Lemaréchal C., Sagastizabal C. Numerical Optimization // Theoretical and Practical Aspects, 2006. P. 490.
