Effect of Cavitator and Nozzle Parameters on the Efficiency job of the impulse Jet Generator

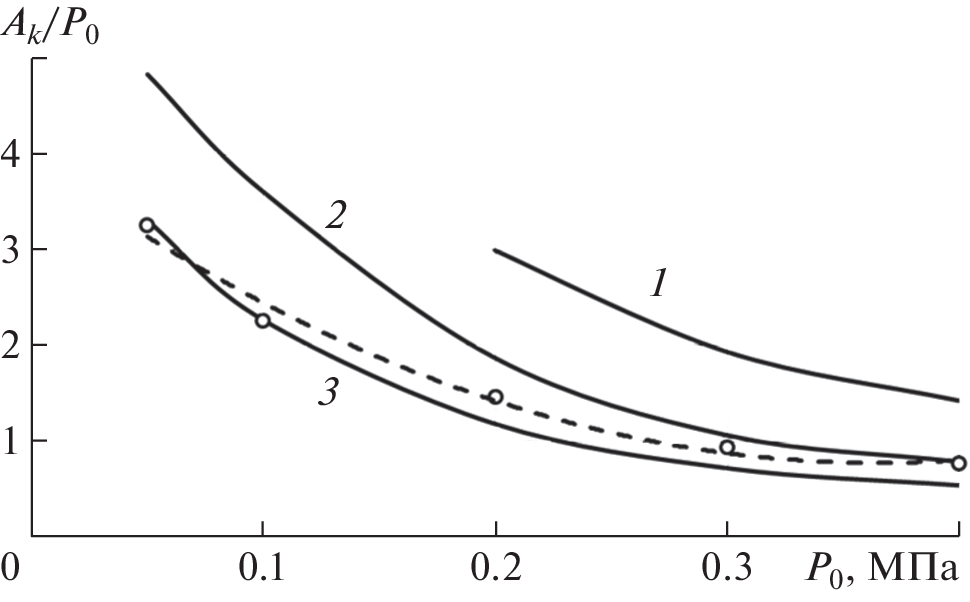

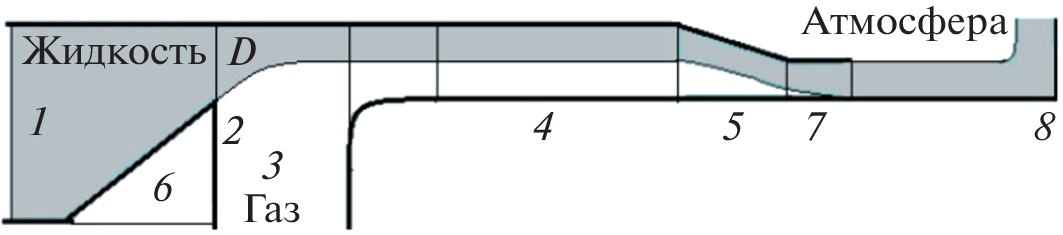

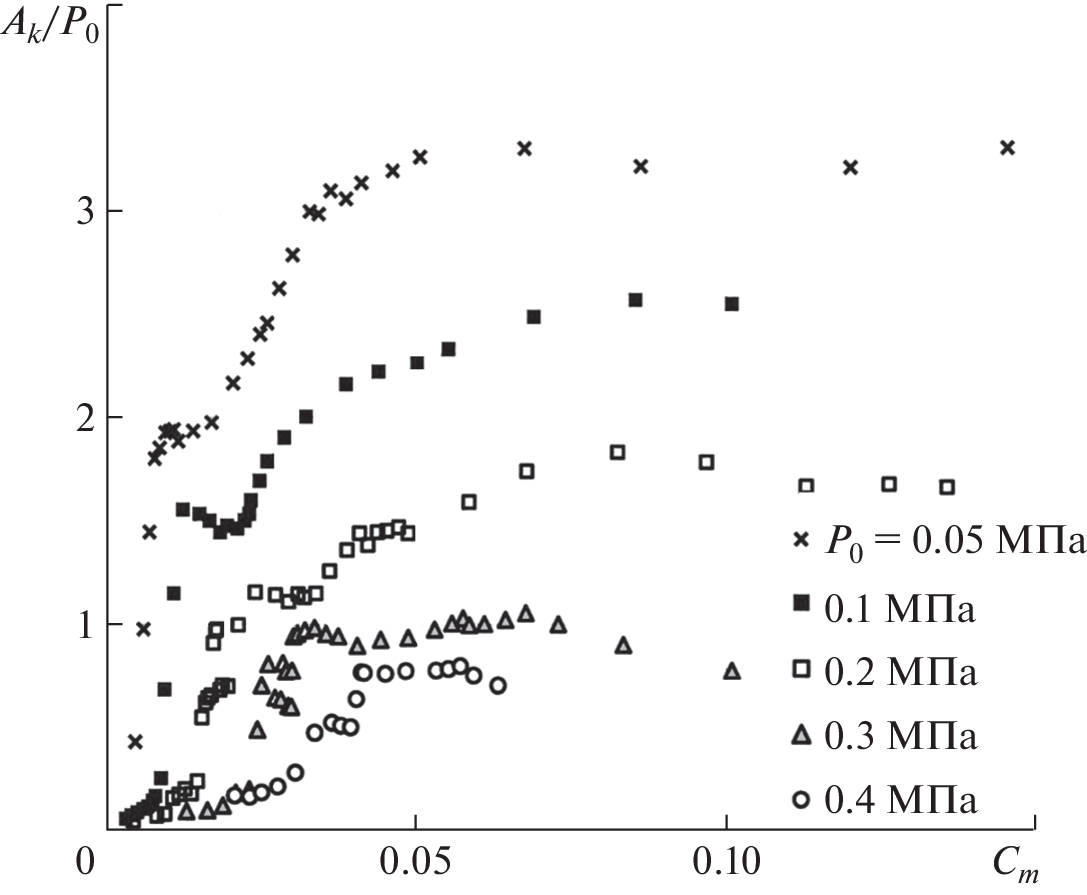

Studies of fluid jet flows in the presence of a ventilated cavity with a negative cavitation number, carried out at the Institute of Mechanics of Moscow State University, showed that under certain conditions, self-cavitational oscillations with a high intensity of pressure pulsations occur in such a hydraulic system. It was shown that it is possible in principle to use the self-oscillation regime to create periodic impulsed  jets during outflow from a converging nozzle into the atmosphere. The influence of the parameters of the cavitator and the outlet nozzle on the intensity of the impact of the outflowing liquid on the screen located perpendicular to the outflow direction is studied. It is shown that an increase in the length of the nozzle can significantly increase the efficiency of the generator, and a smooth narrowing of the channel in front of the cavitator can increase the operating range of the generator in the direction of larger gas blows. It is shown that there is a scale effect - with increasing head pressure, the relative intensity of self-oscillations decreases, but tends to reach a horizontal asymptote.
