A Surprising Example of Crystal Structure Retention for 3,5-Di-(tert-butyl)-2-hydroxyazobenzene Ligand during the Formation of Ni(II) and Pd(II) Complexes

S. M. Aldoshin; Алдошин С. М.; V. V. Tkachev; Ткачев В. В.; A. N. Utenyshev; Утенышев А. Н.; K. V. Bozhenko; Боженко К. В.

doi:10.31857/S0132344X22600308

A Surprising Example of Crystal Structure Retention for 3,5-Di-(tert-butyl)-2-hydroxyazobenzene Ligand during the Formation of Ni(II) and Pd(II) Complexes

作者: Aldoshin S.M.¹, Tkachev V.V.¹, Utenyshev A.N.¹, Bozhenko K.V.¹
隶属关系:
1. Institute of Problems of Chemical Physics, Russian Academy of Sciences, 142432, Chernogolovka, Moscow oblast, Russia
期: 卷 49, 编号 5 (2023)
页面: 308-314
栏目: Articles
URL: https://bakhtiniada.ru/0132-344X/article/view/137301
DOI: https://doi.org/10.31857/S0132344X22600308
EDN: https://elibrary.ru/FYSHND
ID: 137301

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

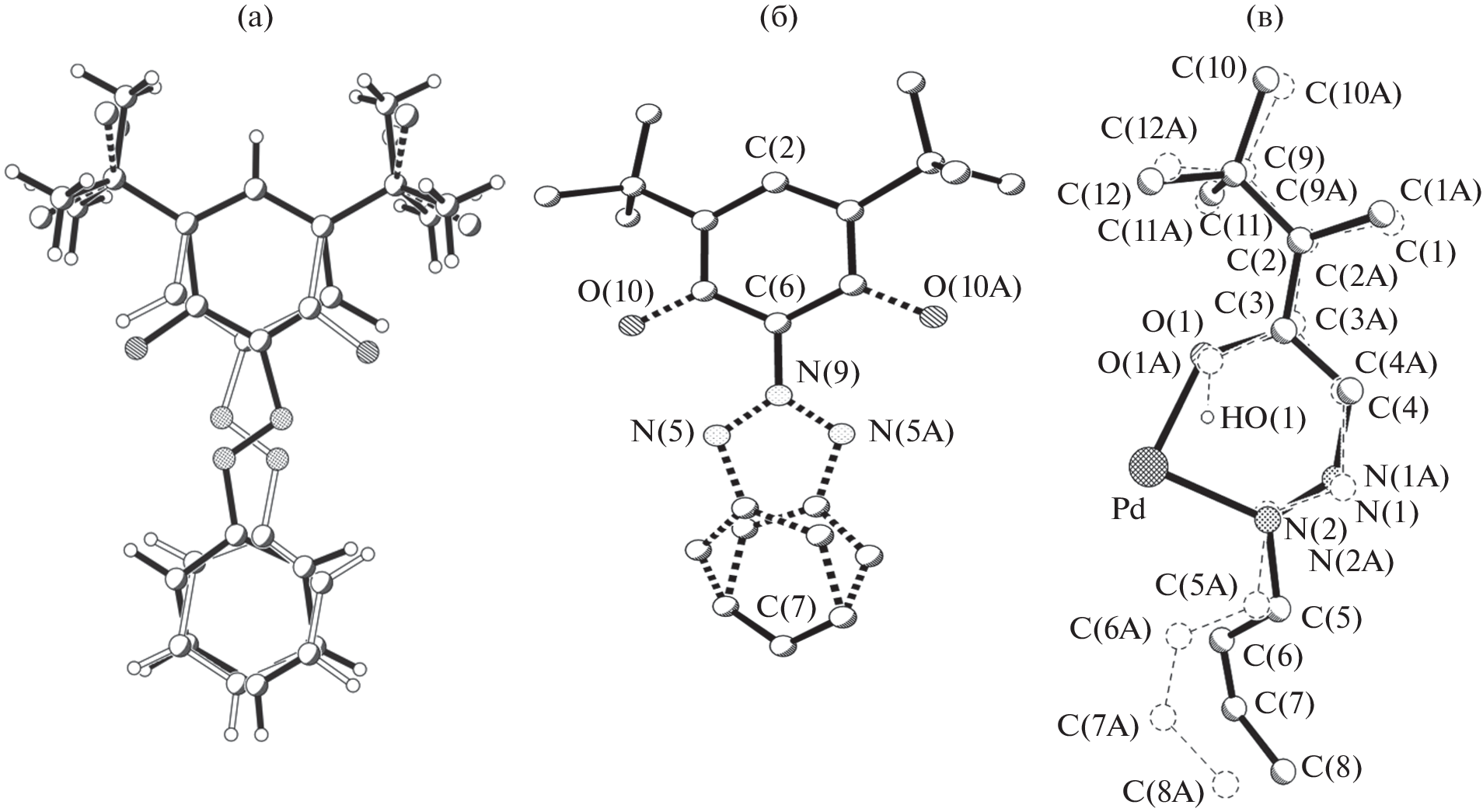

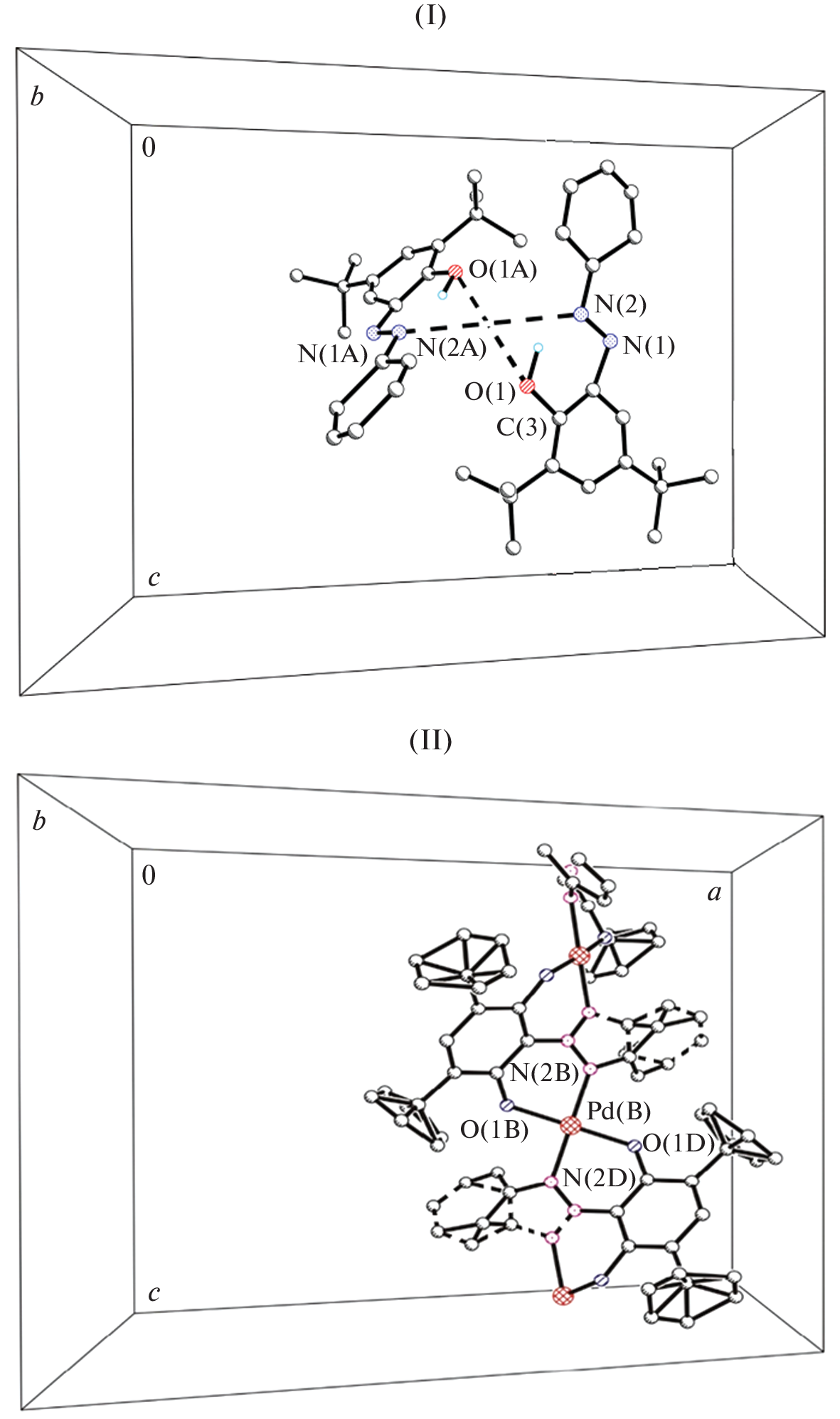

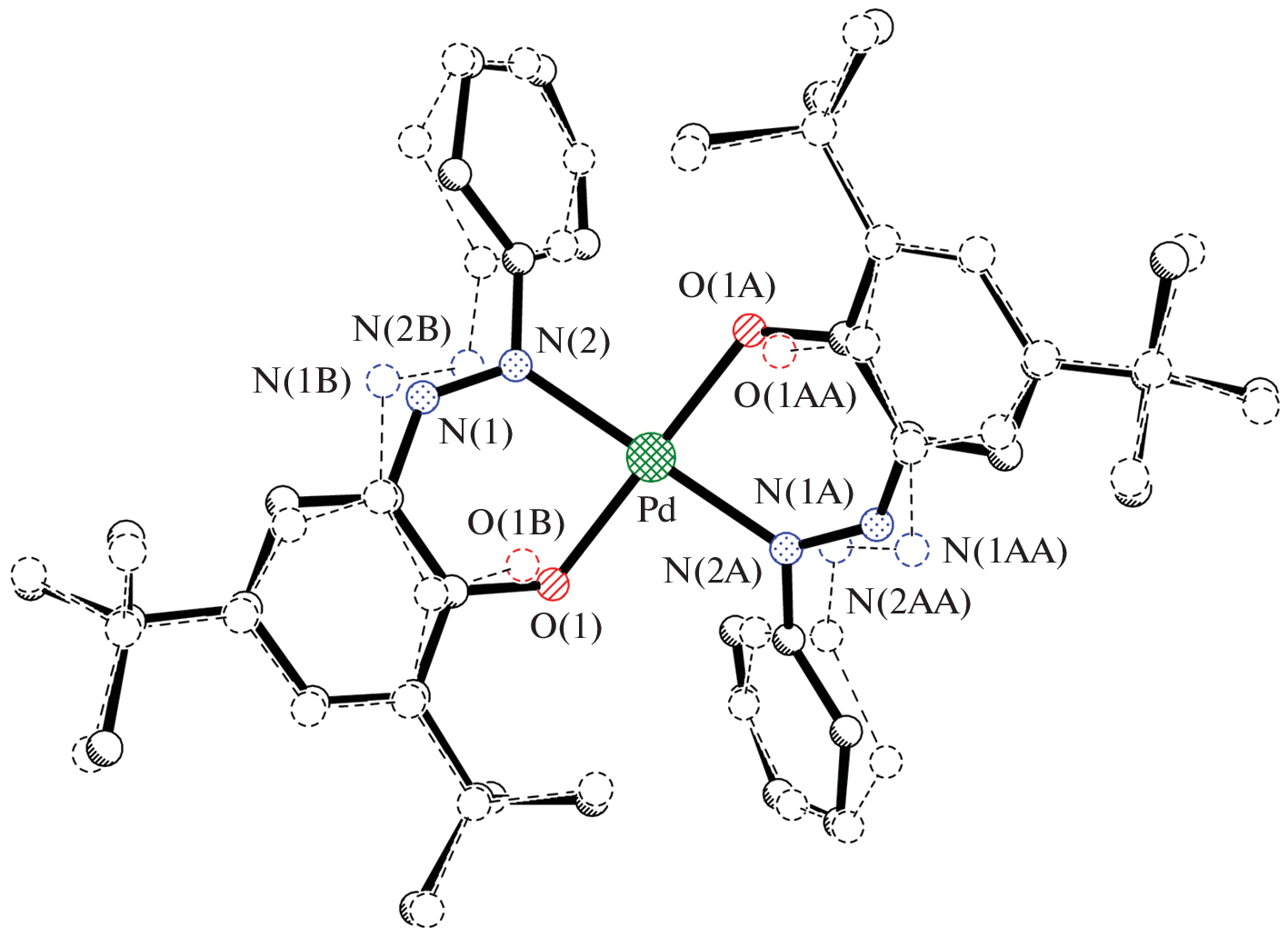

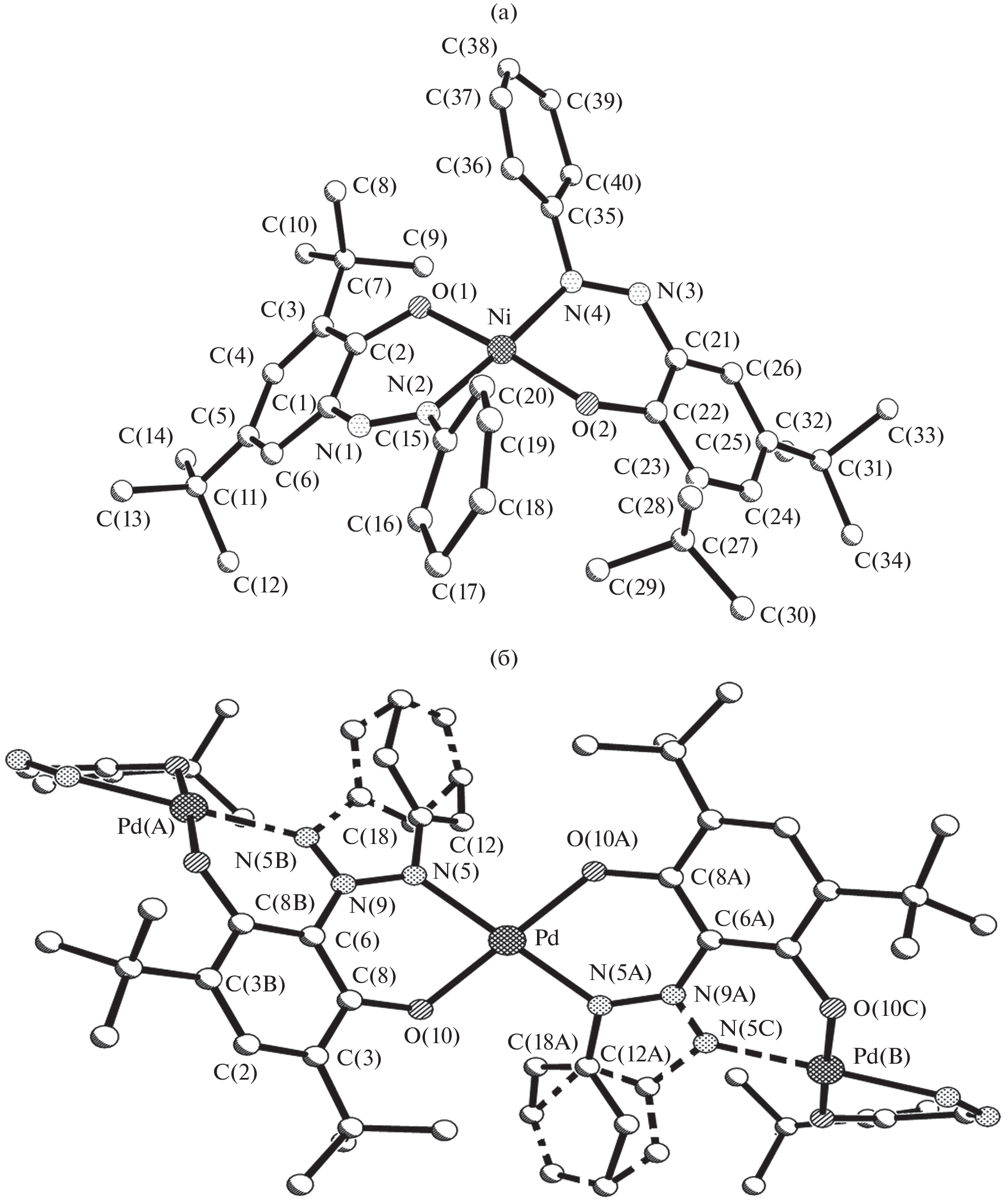

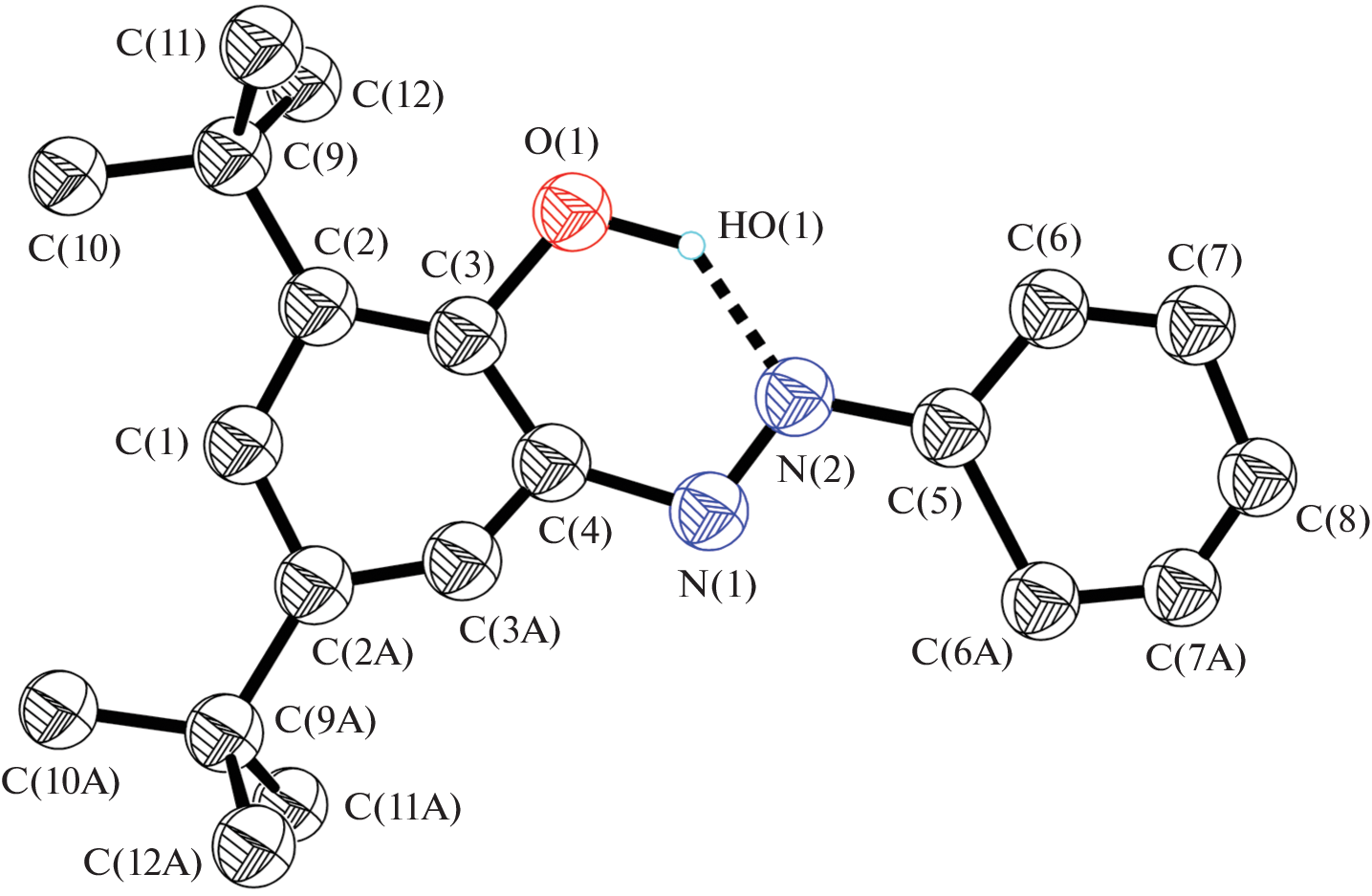

The structures of 3,5-di-(tert-butyl)-2-hydroxyazobenzene (L) in the free state and in complexes with Ni2+ (I) and Pd2+ (II) cations are studied by X-ray diffraction (XRD). The same space group R3¯с with close unit cell parameters, the same crystal structure motif, and unusual conformations of the cupola-shaped coordination polyhedra of complexes I and II are revealed by XRD for ligand L. In complexes I and II based on this compound as the ligand, the coordinating atoms form trans-planar coordination nodes.

关键词

XRD, azo compounds, isomerism, conformation, quantum chemical calculations

参考

Коган В.А., Харабаев Н.Н., Осипов О.А., Юрченко Э.Н. // Журн. общ. химии. 1975. № 45. С. 362.
Коган В.А., Харабаев Н.Н., Осипов О.А., Кочин С.Г. // Журн. структур. химии. 1981. Т. 22. № 1. С. 126.
Дьяченко О.А., Атовмян Л.О., Алдошин С.М., Ткачев В.В. // Журн. структур. химии. 1978. Т. 19. № 5. С. 829.
Kogan V.A., Kochin S.G., Antsyshkina A.S. et al. // Mendeleev Commun. 1997. V. 7. № 6. C. 239.
Алдошин C.М., Алексеенко В.А., Атовмян Л.О. и др. // Коорд. химия. 1975. Т. 10. С. 1075.
Бурлов А.С., Ураев А.И., Лысенко К.А. и др. // Журн. неорган. химии. 2015. Т. 60. № 12. С. 1621 (Burlov A.S., Uraev A.I., Lysenko K.A. et al. // Russ. J. Inorg. Chem. 2015. V. 60. P. 1481).https://doi.org/10.1134/S0036023615120062
Коган В.А., Любченко С.Н., Щербаков И.Н. и др. // Коорд. химия. 2005. Т. 31. № 8. С. 563 (Kogan V.A., Lyubchenko S.N., Shcherbakov I.N. et al. // Russ. J. Coord. Chem. 2005. V. 31. № 8. P. 533).https://doi.org/10.1007/s11173-005-0132-0
Ткачев В.В., Боженко К.В., Утенышев А.Н. и др. // Изв. АН. Сер. хим. 2021. № 5. С. 847 (Tkachev V.V., Bozhenko K.V., Utenyshev A.N. et al. // Russ. Chem. Bull., Int. Ed. 2021. V. 70. № 5. P. 847).
Kostic M.N., Dutca L.M. // Comprehensive Coordination Chemistry II / Eds. McCleverty Y.A., Meyer T.Y. Amsterdam–Oxford–NY: Elesevier Pergamon Press, 2003. P. 556.
Ana S.D., Ferreira M., Fernanda N.N. et al. // Inorg. Chim. Acta. 2013. V. 395. P. 169.
Sheldrick G.M. The SHELX-97. Manual. Göttingen (Germany): Univ. of Göttingen, 1997.
License to Use Agreement. Gaussian, Inc., 340 Quinnipiac Street, Building 40, Wallingford, CT 06492.
Kresse G., Furthmüller J. // Phys. Rev. B. 1996. V. 54. P. 11169.
Kresse G., Joubert D. // Phys. Rev. B. 1999. V. 59. P. 1758. https://doi.org/10.1103/PhysRevB.59.1758
Marten J., Seichter W., Weber E. // Z. Anorg. Allg. Chem. 2005. V. 631. P. 869.
Курбатов В.П., Анцышкина А.С., Кухаричева Е.С., Гарновский А.Д. // Журн. неорган. химии. 1996. Т. 41. № 8. С. 1315 (Kurbatov V.P., Antsyshkina A.S., Kukharicheva E.S., Garnovsky A.D. // Russ. J. Inorg. Chem. 1996. V. 41. № 8. P. 1259).
