Methods of Optimization Thermodynamics in Distillation Processes

A. M. Tsirlin; Цирлин А. М.; A. I. Balunov; Балунов А. И.; I. A. Sukin; Сукин И. А.; A. M. Vasilyev; Васильев А. М.

doi:10.31857/S0040357123040164

Methods of Optimization Thermodynamics in Distillation Processes

作者: Tsirlin A.M.¹, Balunov A.I.¹, Sukin I.A.¹, Vasilyev A.M.¹
隶属关系:
1. Ailamazyan Institute of Program Systems, Russian Academy of Sciences
期: 卷 57, 编号 4 (2023)
页面: 467-478
栏目: Articles
##submission.datePublished##: 01.07.2023
URL: https://bakhtiniada.ru/0040-3571/article/view/138523
DOI: https://doi.org/10.31857/S0040357123040164
EDN: https://elibrary.ru/VKFXLF
ID: 138523

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

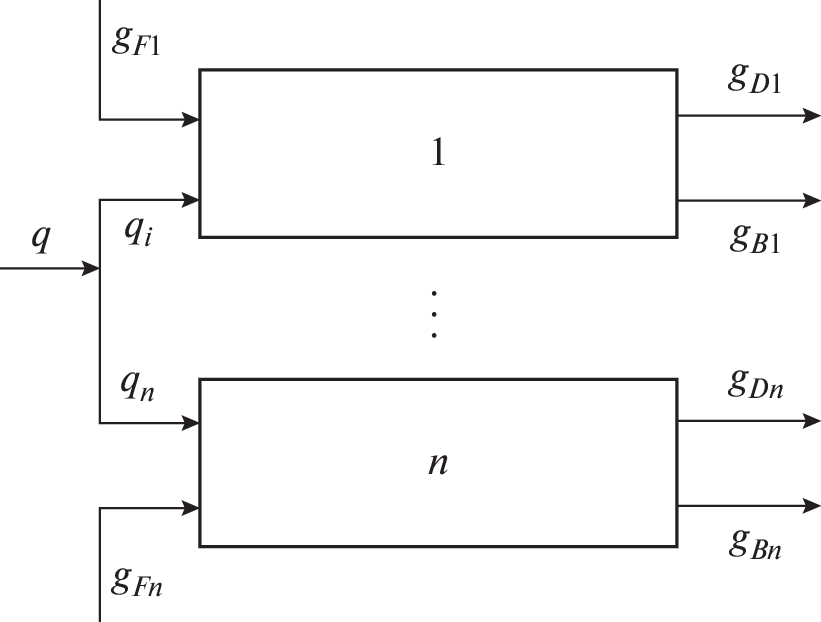

The methodology of optimization thermodynamics was used for the mathematical description and optimization of distillation processes. The following problems were considered: construction of a set of feasible operating conditions of columns separating binary and multicomponent mixtures, selection of the sequence of separation of a multicomponent mixture, feasibility of using a separating agent, selection of the feed temperature and feed point, and optimization of parallel and sequential systems of distillation columns. Calculation formulas for entropy production and heat transfer coefficients in the reboiler and reflux condenser of the column were obtained.

关键词

distillation, thermal efficiency, close-cut separation, maximum performance, minimum heat consumption

参考

Новиков И.И. Эффективный коэффициент полезного действия атомной энергетической установки // Атомная энергия. 1957. № 11. С. 409–412.
Curzon F.L., Ahlborn B. Efficiency of a Carnot engine at maximum power output // Am. J. Phys., 1975. V. 43. № 22. P. 22–24.
Berry R.S., Kasakov V.A., Sieniutycz S., Szwast Z., Tsirlin A.M. Thermodynamic Optimization of Finite Time Processes. Chichester: Wiley, 1999.
Chen L., Wu C., Sun F. Finite time thermodynamic optimization or entropy generation minimization of energy systems // J. Non-Equilib. Thermodyn., 1999. V. 24. P. 327–359.
Tsirlin A.M., Mironova V.A., Amelkin S.A., Kazakov V.A. Finite-time thermodynamics: Conditions of minimal dissipation for thermodynamic process with given rate // Phys. Rev. E., 1998. V. 58. № 1. P. 215–223.
Гельперин Н.И. Основные процессы и аппараты химической технологии. М.: Химия, 1981. 384 с.
Петлюк Ф.Б., Серафимов Л.А. Многокомпонентная ректификация. Теория и расчет. М.: Химия, 1983.
Балунов А.И., Майков В.П. Энтропия и информация в теории ректификации // Известия ВУЗов: Химия и химическая технология, 2003. Т. 46. № 9. С. 54–67.
Плановский А.Н., Николаев П.И. Процессы и аппараты химической и нефтехимической технологии. М.: Химия, 1987. 400 с.
Holland C.D. Fundamentals of Multicomponent Distillation. McGraw-Hill, 1981.
Kister H.Z. Distillation Design. New York: McGraw-Hill, 1992.
Tsirlin A.M., Balunov A.I., Sukin I.A. Estimates of energy consumption and selection of optimal distillation sequence for multicomponent distillation // Theor. Found. Chem. Eng., 2016. V. 50. № 3. P. 258–267.
Tsirlin A.M., Sukin I.A., Balunov A.I., Schwalbe K. The Rule of Temperature Coefficients for Selection of Optimal Separation Sequence for Multicomponent Mixtures in Thermal Systems // J. Non-Equilib. Thermodyn, 2017. V. 42. № 4. P. 359–369.
Tsirlin A.M., Mazikov A.A. Thermodynamic indicators of the perfection of heat exchange systems // J. Eng. Phys. Thermophys., 2023. V. 96. № 3. P. 516–531.
Розоноэр Л.И., Цирлин А.М. Оптимальное управление термодинамическими системами // Автоматика и телемеханика, 1983. № 1. С. 70–79; № 2. С. 88–101; № 3. С. 50–64.
Zaeva M.A., Tsirlin A.M., Sukin I.A. Influence of the Kinetics of Heat and Mass Transfer in a Binary-Rectification Column on the Realizability Range of its Regimes // J. Eng. Phys. Thermophys., 2018. V. 91. P. 515–530.
Зиятдинов Н.Н., Островский Г.М., Емельянов И.И. Построение системы теплообмена при реконструкции и синтезе оптимальных систем ректификационных колонн // Теоретические основы химической технологии. 2016. Т. 50. № 2. С. 184–193.
